We're professional PVDF sheet with glass knitted fabric backing manufacturers and suppliers in China, to buy or wholesale glass fabric backing PVDF sheet from our factory. For quotation or if you have any questions, contact us now for customized PVDF sheet with glass fabric backing and price.

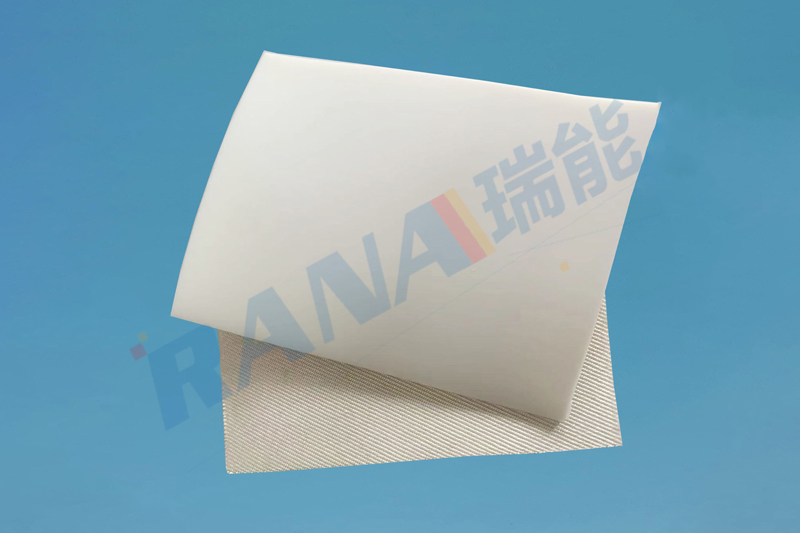

Imported PVDF resin, with glass knitted fabric as the backing. PVDF's high fluidity makes it easier to penetrate into the three-dimensional pores of the knitted fabric.
Through "hot-press melting" process, utilizes PVDF's low viscosity characteristic to achieve "full filling" of resin into the knitted fabric, with lining Sheet porosity ≤0.03% (industry ≥0.1%).
The combination of three-dimensional reticular structure of glass knitted fabric and high filling property of PVDF forms a "gap-free" composite layer, making the impermeability (permeability ≤0.0004g/m²·day) and tear strength (≥70N/mm) of the lining Sheet leading the industry, suitable for highly permeable media.
Tested by East China University of Science and Technology for permeability, it shows no penetration after 3 years of immersion in liquid bromine (highly permeable medium) (ordinary PVDF Sheets leak after 1 year), with a temperature resistance range of -40°C to 150°C. RANA holds the invention patent for Manufacturing Process of Large Chemical Equipment and Its Lining Anticorrosive Sheets, with internationally leading process level.
Used in storage tanks and transportation tankers for highly permeable media (e.g., liquid bromine, chlorosulfonic acid). It has provided solutions for SMIC and Qiaoli Chemical (Taiwan, China), ensuring medium purity (metal ion content ≤0.1ppb) and helping customers improve the quality of high-end materials.
RANA possesses mature overseas service capabilities. It has established branches in many parts of the world to build a sales and service network. Through international technical cooperation, it has made its products compatible with the standards of many countries. It can provide customized solutions for the special working conditions of overseas customers. It has formed a multilingual professional team to provide on-site support and rapid spare parts supply. Its products are exported to many countries and have obtained certifications from international giants. It also continues to invest in research and development and innovation to continuously improve service quality and product performance to meet the needs of overseas markets.
Ranatank focuses on providing high-quality fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment and excellent service with 30+ years’ expertise. Ranatank provides you with wholesale, customization, OEM & ODM service...
If you have any questions about PVDF sheet with glass knitted fabric backing, glass fabric backing PVDF sheet, PVDF sheet with glass fabric backing, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment... Welcome you to visit our factory!
