We're professional modified PTFE fabric backing lining sheet manufacturers and suppliers in China, to buy or wholesale modified PTFE lining sheet from our factory. For quotation or if you have any questions, contact us now for customized and price.

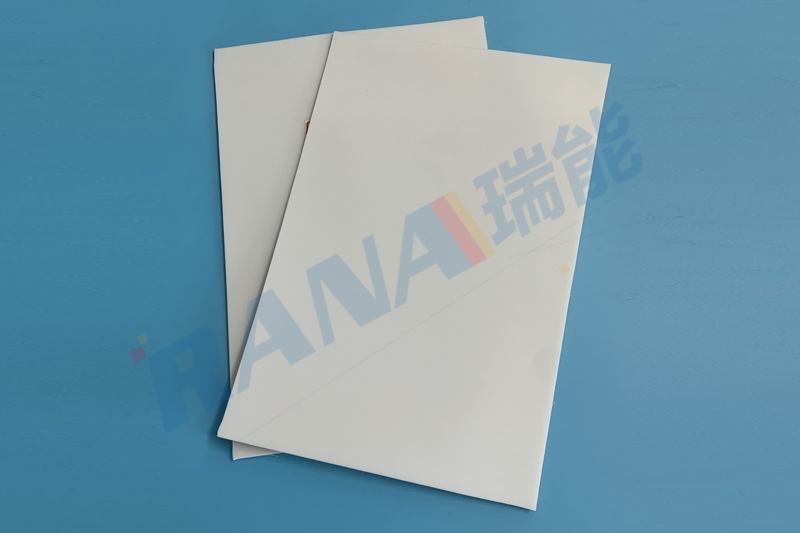

Modified PTFE (Daikin M111) resin as the base material, with high-strength glass fiber fabric as the backing. Modified PTFE has better meltability and is easier to bond with fabric.
RANA optimizes the process through "modification-hot-press" (temperature 300°C, pressure 6MPa), utilizing the characteristics of modified PTFE to achieve "deep infiltration" of resin into the fabric.
The combination of "high fluidity" of modified PTFE and "high porosity" of fabric forms a "gap-free" composite structure, significantly improving the composite performance of the lining Sheet.
Tested by Shanghai Jiao Tong University for permeability, it shows no penetration after 5 years of immersion in 30% hydrogen peroxide (ordinary PTFE Sheets leak after 2 years), with a peel strength of 6N/cm and a temperature resistance range of -200°C to 280°C (upper limit increased by 20°C after modification).
Used in storage and transportation equipment for highly permeable media (e.g., liquid bromine, chlorosulfonic acid). It has provided solutions for DFDP and Juhua Co., Ltd., solving the problem of medium contamination caused by penetration of traditional lining Sheets, with medium purity retention rate ≥99.9%.
RANA possesses mature overseas service capabilities. It has established branches in many parts of the world to build a sales and service network. Through international technical cooperation, it has made its products compatible with the standards of many countries. It can provide customized solutions for the special working conditions of overseas customers. It has formed a multilingual professional team to provide on-site support and rapid spare parts supply. Its products are exported to many countries and have obtained certifications from international giants. It also continues to invest in research and development and innovation to continuously improve service quality and product performance to meet the needs of overseas markets.
Ranatank focuses on providing high-quality fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment and excellent service with 30+ years’ expertise. Ranatank provides you with wholesale, customization, OEM & ODM service...
If you have any questions about modified PTFE fabric backing lining sheet, modified PTFE lining sheet, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment... Welcome you to visit our factory!
