We're professional PTFE sheet with glass fabric backing manufacturers and suppliers in China, to buy or wholesale glass fabric backing PTFE sheet from our factory. For quotation or if you have any questions, contact us now for customized and price.

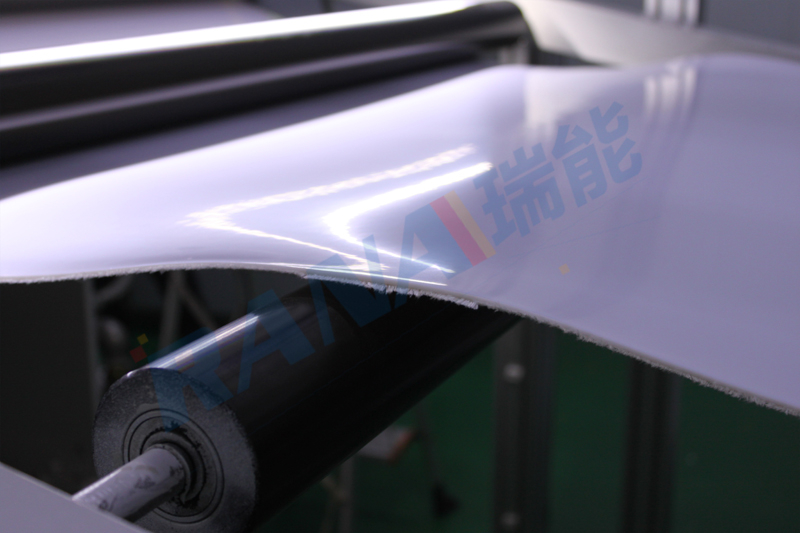

Daikin PTFE resin (Japan) as the surface material, with glass fiber cloth as the backing (monofilament diameter ≤9μm). The fiber surface is treated to enhance bonding with PTFE.
RANA adopts the independently developed "gradient hot-press" process (temperature gradually increased from 200°C to 360°C), allowing PTFE resin molecular chains to fully diffuse into glass fiber gaps, forming a "tree-root-like" anchoring structure (peel strength ≥5N/cm).
The combination of high modulus of glass fiber (72GPa) and low friction coefficient of PTFE (0.04) endows the lining Sheet with both wear resistance (wear loss ≤0.001g/cm²) and friction reduction characteristics, extending equipment service life.
Tested by Nanjing Tech University for wear resistance, the wear loss is only 0.05mm after 1000 hours of scouring with sand-containing acid liquid at a flow rate of 5m/s (ordinary lining Sheets 0.2mm), with a temperature resistance range of -200°C to 260°C and internationally leading process level.
Used in pipes with particulate media (e.g., phosphate fertilizer plant slurry delivery pipes) and stirring kettles (e.g., catalyst mixing kettles) requiring wear resistance. It has provided solutions for Wengfu Group and Juhua Co., Ltd., extending the equipment replacement cycle from 6 months to 2 years and saving over 500,000 yuan annually.
RANA possesses mature overseas service capabilities. It has established branches in many parts of the world to build a sales and service network. Through international technical cooperation, it has made its products compatible with the standards of many countries. It can provide customized solutions for the special working conditions of overseas customers. It has formed a multilingual professional team to provide on-site support and rapid spare parts supply. Its products are exported to many countries and have obtained certifications from international giants. It also continues to invest in research and development and innovation to continuously improve service quality and product performance to meet the needs of overseas markets.
Ranatank focuses on providing high-quality fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment and excellent service with 30+ years’ expertise. Ranatank provides you with wholesale, customization, OEM & ODM service...
If you have any questions about PTFE sheet with glass fabric backing, glass fabric backing PTFE sheet, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of fluoropolymer PTFE / PFA / ECTFE / PVDF lined storage tanks, mobile tanks, ISO containers and anti-corrosion equipment... Welcome you to visit our factory!
